Layout Alignment

Alignment determines "where to place" content in the remaining space. Sizing (stretching/shrinking) is the role of Sizing, while Alignment is responsible purely for "positioning".

Basic Positioning Rules

The content's own size is determined by width / height.
Where to place it within the parent is determined by alignment.

Positioning a Single Element (Container)

When there is only one child element inside a parent, you can specify 9 positions using the alignment property.

import nuiitivet as nv
import nuiitivet.material as md

alignments = [
    "top-left",
    "top-center",
    "top-right",
    "center-left",
    "center",
    "center-right",
    "bottom-left",
    "bottom-center",
    "bottom-right",
]


def _tile(alignment: str) -> md.Card:
    return md.Card(
        md.Text(alignment, padding=8),
        width=160,
        height=96,
        alignment=alignment,
    )

nv.UniformFlow(
    columns=3,
    main_gap=8,
    cross_gap=8,
    padding=8,
    # Render all variants so differences are easy to compare.
    children=[_tile(a) for a in alignments],
)

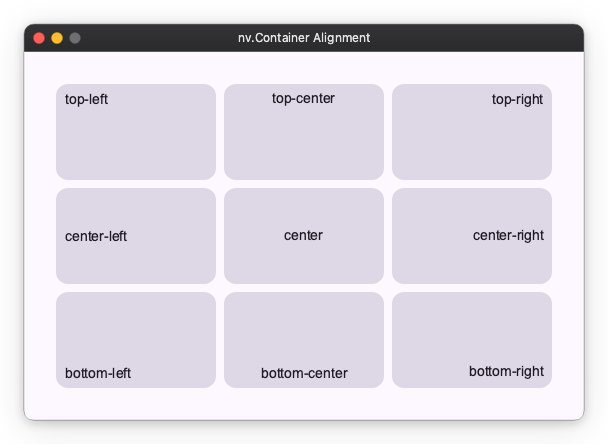

Container alignment examples

Property	Meaning	Available Values
`alignment`	Placement position of the child element	`top-left`, `top-center`, `top-right`, `center-left`, `center`, `center-right`, `bottom-left`, `bottom-center`, `bottom-right`

Note: "Expanding to full width" is not the job of alignment. In that case, specify "100%" or Sizing.flex(...) in the child's width.

Arranging Multiple Elements (Row / Column)

When arranging multiple elements, different properties are used for the "arranging direction (Main axis)" and "other direction (Cross axis)".

Horizontal Arrangement (Row)

Row uses different values for the arranging direction (Horizontal=Main) and the crossing direction (Vertical=Cross).

Examples of `main_alignment` (6 patterns)

import nuiitivet as nv
import nuiitivet.material as md

main_alignments = [
    "start",
    "center",
    "end",
    "space-between",
    "space-around",
    "space-evenly",
]


def _demo_row(alignment: str) -> nv.Row:
    # The row stretches to full width, so main-axis alignment is visible.
    return nv.Row(
        width="100%",
        gap=8,
        main_alignment=alignment,
        cross_alignment="center",
        children=[_tile("A"), _tile("B"), _tile("C")],
    )


def _tile(label: str) -> md.Card:
    return md.Card(
        md.Text(label),
        width=56,
        height=40,
        alignment="center",
    )


nv.Column(
    gap=12,
    cross_alignment="start",
    children=[
        md.Card(
            nv.Column(
                children=[
                    md.Text(a),
                    _demo_row(a),
                ],
                gap=8,
                cross_alignment="start",
                width="100%",
            ),
            padding=12,,
            style=md.CardStyle.outlined(),
        )
        for a in main_alignments
    ],
)

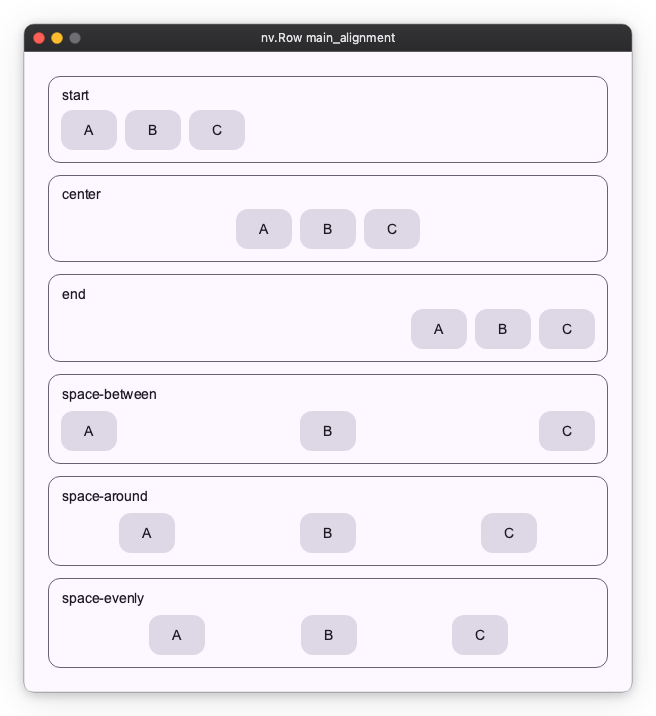

Row main_alignment examples

Examples of `cross_alignment` (3 patterns)

import nuiitivet as nv
import nuiitivet.material as md

cross_alignments = [
    "start",
    "center",
    "end",
]


def _demo_row(alignment: str) -> nv.Row:
    # The row has a fixed height, so cross-axis alignment is visible.
    return nv.Row(
        width="100%",
        height=120,
        gap=8,
        main_alignment="start",
        cross_alignment=alignment,
        children=[_bar("H=32", 32), _bar("H=64", 64), _bar("H=96", 96)],
    )


def _bar(label: str, h: int) -> md.Card:
    return md.Card(
        md.Text(label),
        width=72,
        height=h,
        alignment="center",
    )


def _panel(alignment: str) -> md.Card:
    return md.Card(
        nv.Column(
            children=[md.Text(alignment), _demo_row(alignment)],
            gap=8,
            cross_alignment="start",
            width="100%",
        ),
        padding=12,,
        style=md.CardStyle.outlined(),
    )


nv.Column(
    gap=12,
    cross_alignment="start",
    # Render all variants so differences are easy to compare.
    children=[
        _panel(a)
        for a in cross_alignments
    ],
)

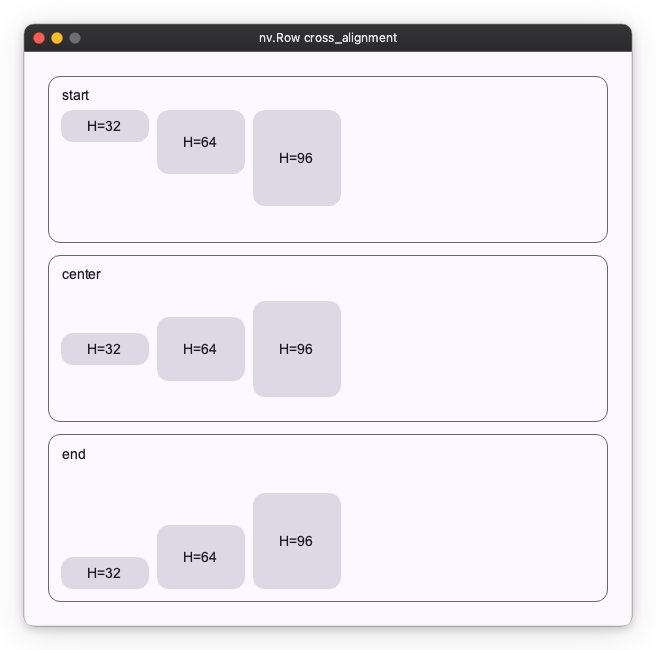

Row cross_alignment examples

Property	Meaning	Available Values
`main_alignment`	Horizontal placement	`start` (Left), `center`, `end` (Right), `space-between` (Both ends), `space-around`, `space-evenly`
`cross_alignment`	Vertical alignment	`start` (Top), `center`, `end` (Bottom)

Vertical Arrangement (Column)

Column uses different values for the arranging direction (Vertical=Main) and the crossing direction (Horizontal=Cross).

Column `main_alignment` Examples (4 patterns)

import nuiitivet as nv
import nuiitivet.material as md

main_alignments = [
    "start",
    "center",
    "end",
    "space-between",
]


def _demo_column(alignment: str) -> nv.Column:
    # The column has a fixed height, so main-axis alignment is visible.
    return nv.Column(
        width="100%",
        height=250,
        gap=6,
        main_alignment=alignment,
        cross_alignment="center",
        children=[_tile("A"), _tile("B"), _tile("C")],
    )


def _tile(label: str, *, width: int = 72, height: int = 32) -> md.Card:
    return md.Card(
        md.Text(label),
        width=width,
        height=height,
        alignment="center",
    )


def _panel(alignment: str) -> md.Card:
    return md.Card(
        nv.Column(
            children=[md.Text(alignment), _demo_column(alignment)],
            gap=8,
            cross_alignment="start",
            width="100%",
        ),
        width=150,
        padding=12,,
        style=md.CardStyle.outlined(),
    )


nv.Column(
    gap=12,
    cross_alignment="start",
    children=[
        nv.Row(
            gap=12,
            main_alignment="start",
            cross_alignment="start",
            # Render all variants side-by-side for easy comparison.
            children=[_panel(a) for a in main_alignments],
        ),
    ],
)

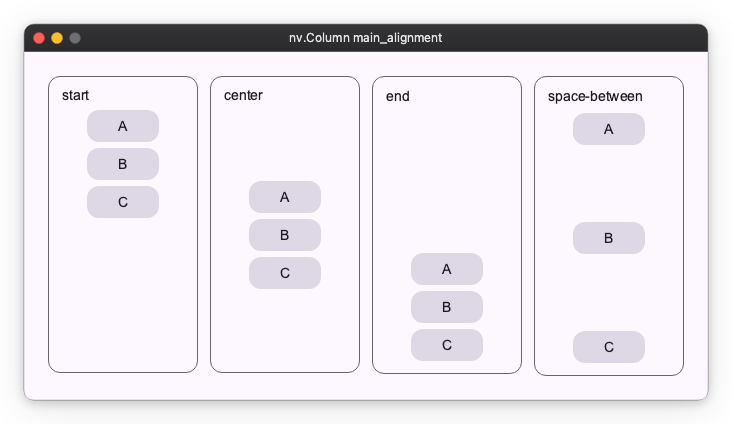

Column main_alignment examples

Column `cross_alignment` Examples (3 patterns)

import nuiitivet as nv
import nuiitivet.material as md

cross_alignments = [
    "start",
    "center",
    "end",
]


def _demo_column(alignment: str) -> nv.Column:
    # The tiles are full-width, so cross-axis alignment is visible.
    return nv.Column(
        width="100%",
        gap=6,
        main_alignment="start",
        cross_alignment=alignment,
        children=[_tile("W=72"), _tile("W=72"), _tile("W=72")],
    )


def _tile(label: str, *, width: int = 72, height: int = 32) -> md.Card:
    return md.Card(
        md.Text(label),
        width=width,
        height=height,
        alignment="center",
    )


def _panel(alignment: str) -> md.Card:
    return md.Card(
        nv.Column(
            children=[md.Text(alignment), _demo_column(alignment)],
            gap=8,
            cross_alignment="start",
            width="100%",
        ),
        width=200,
        padding=12,,
        style=md.CardStyle.outlined(),
    )


nv.Column(
    gap=12,
    cross_alignment="start",
    children=[
        nv.Row(
            gap=12,
            main_alignment="start",
            cross_alignment="start",
            # Render all variants side-by-side for easy comparison.
            children=[_panel(a) for a in cross_alignments],
        ),
    ],
)

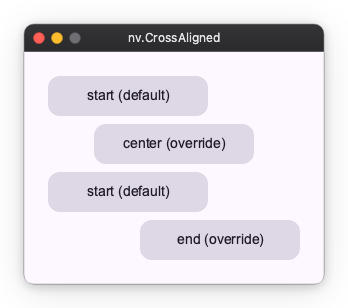

Column cross_alignment examples

Property	Meaning	Available Values
`main_alignment`	Vertical placement	`start` (Top), `center`, `end` (Bottom), `space-between` (Both ends)
`cross_alignment`	Horizontal alignment	`start` (Left), `center`, `end` (Right)

Next Steps

Designing Sizes: layout_sizing.md
Separation of Duties in Grid: layout_grid.md
