Navigation Overview

Nuiitivet provides a robust navigation system for managing screen transitions and routing within your application. The navigation system is built around the Navigator widget, which manages a stack of Route objects.

The Navigator

The Navigator is a widget that manages a set of child widgets with a stack discipline. It allows you to transition between different screens (or "pages") in your application.

When you create an App, a root Navigator is automatically set up for you. If you pass a plain Widget as content (e.g. App(HomeScreen())), it is wrapped in an implicit root Navigator. If you pass a Navigator explicitly (e.g. App(Navigator.intents(...))), that instance is used as the root. In all cases you can access the root navigator from anywhere using Navigator.root().

Basic Navigation: Push and Pop

The most common navigation operations are push and pop.

Pushing a New Screen

To navigate to a new screen, you use the push() method. This adds a new route to the top of the navigator's stack, making it the currently visible screen.

import nuiitivet as nv

from nuiitivet.navigation import Navigator
from nuiitivet.material import Text, Button
from nuiitivet.layout.column import Column
from nuiitivet.widgeting.widget import ComposableWidget
from nuiitivet.widgets.box import Box
from nuiitivet.material import ButtonStyle

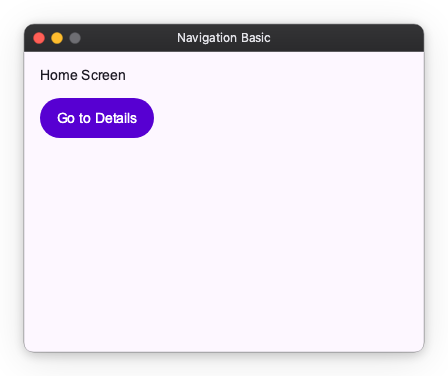

class HomeScreen(ComposableWidget):
    def build(self):
        def navigate_to_details():
            # Push a new widget directly onto the navigation stack
            Navigator.root().push(DetailsScreen())

        return Column(
            padding=16,
            gap=12,
            children=[
                Text("Home Screen"),
                Button("Go to Details", on_click=navigate_to_details, style=ButtonStyle.filled()),
            ],
        )

Popping the Current Screen

To return to the previous screen, you use the pop() method. This removes the top route from the navigator's stack, revealing the route beneath it. Let's look at the DetailsScreen that we pushed in the previous example.

from nuiitivet.material import ButtonStyle
class DetailsScreen(ComposableWidget):
    def build(self):
        def go_back():
            # Pop the current screen off the navigation stack
            Navigator.root().pop()

        return Box(
            background_color="#F5F7FF",
            width=nv.Sizing.flex(1),
            height=nv.Sizing.flex(1),
            child=Column(
                padding=16,
                gap=12,
                children=[
                    Text("Details Screen"),
                    Button("Back", on_click=go_back, style=ButtonStyle.filled()),
                ],
            ),
        )

The Stack Structure

The Navigator maintains a stack of routes. When you call push(), the new screen is placed on top of the stack. If you call push() multiple times, the screens are stacked on top of each other.

For example, if you are on Screen A and push Screen B, the stack becomes [Screen A, Screen B]. If you then push Screen C, the stack becomes [Screen A, Screen B, Screen C].

Calling pop() removes the top screen. In the previous example, calling pop() from Screen C will remove it, leaving [Screen A, Screen B], and Screen B will become visible again.

This stack-based approach makes it easy to manage complex navigation flows and ensures that users can always navigate back to where they came from.

Next Steps

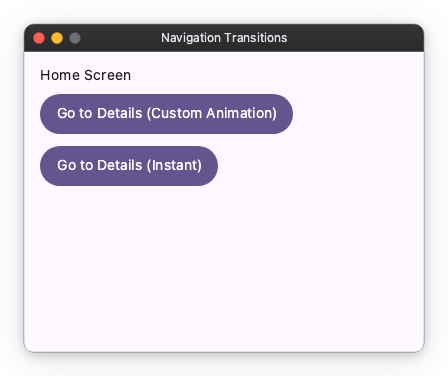

• Learn how to customize transitions using PageRoute.
• Discover how to decouple navigation logic using Intents.
• Explore advanced navigation patterns with MaterialNavigator.
