Layout Spacing

Layout spacing is expressed only by "spacing inwards" and "spacing between elements". This page explains how to use padding and gap, which are simple and highly reusable ways to add spacing. There is no margin. First, verify that all spacing can be expressed with just these two.

padding (Inner Spacing)

Creates spacing between itself and its child elements (inside). In components with background colors or borders, this becomes the distance to the content.

import nuiitivet as nv
import nuiitivet.material as md

# Creates 16px spacing inside the container (spacing between buttons is zero)
content = nv.Column(
    children=[
        md.Button("Button 1", style=md.ButtonStyle.filled()),
        md.Button("Button 2", style=md.ButtonStyle.filled()),
        md.Button("Button 3", style=md.ButtonStyle.outlined()),  # Only this one has different style
        md.Button("Button 4", style=md.ButtonStyle.filled()),
    ],
    padding=16,
)

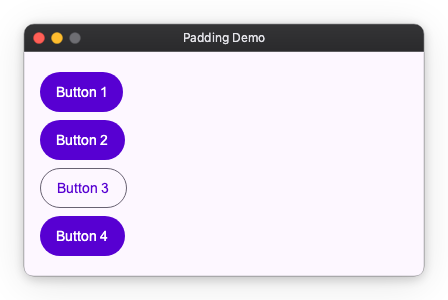

Padding example

gap (Spacing Between Elements)

Creates uniform space between child elements. There is no need to set spacing for each child element, and you can adjust the overall spacing in one place.

import nuiitivet as nv
import nuiitivet.material as md

# Creates a 12px gap between buttons
content = nv.Column(
    children=[
        md.Button("Button 1", style=md.ButtonStyle.filled()),
        md.Button("Button 2", style=md.ButtonStyle.filled()),
        md.Button("Button 3", style=md.ButtonStyle.outlined()),
        md.Button("Button 4", style=md.ButtonStyle.filled()),
    ],
    gap=12,
    padding=16,
)

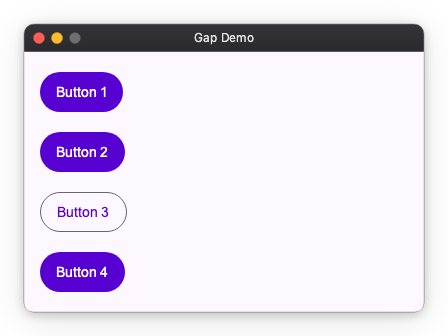

Gap example

When you want to change spacing "only here"

padding and gap are convenient for setting settings collectively, but if you want to "separate only here" or "give spacing only to specific elements", use the following two methods.

1. Insert Spacer (Separate Elements)

Place a Spacer if you want to widen the interval between adjacent elements only at a specific location.

import nuiitivet as nv
import nuiitivet.material as md

# Widen interval only before and after Button 3
content = nv.Column(
    children=[
        md.Button("Button 1", style=md.ButtonStyle.filled()),
        md.Button("Button 2", style=md.ButtonStyle.filled()),
        nv.Spacer(height=24),  # Widen only here
        md.Button("Button 3", style=md.ButtonStyle.outlined()),
        nv.Spacer(height=24),  # Widen only here
        md.Button("Button 4", style=md.ButtonStyle.filled()),
    ],
    gap=12,  # Basic interval
    padding=16,
)

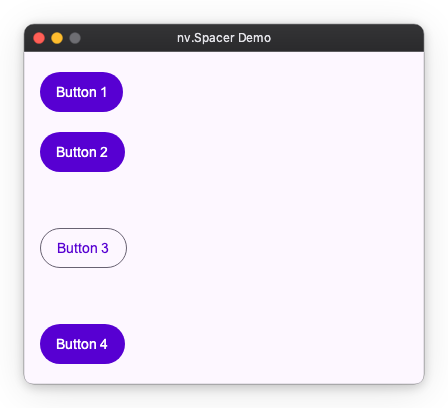

Spacer example

2. Wrap with Container (Open Space Around)

If you want spacing only around a specific element (so-called margin-like usage), wrap that element in a Container and set padding on the Container.

import nuiitivet as nv
import nuiitivet.material as md

# Create spacing only around Button 3 (top, bottom, left, right)
content = nv.Column(
    children=[
        md.Button("Button 1", style=md.ButtonStyle.filled()),
        md.Button("Button 2", style=md.ButtonStyle.filled()),
        nv.Container(
            child=md.Button("Button 3", style=md.ButtonStyle.outlined()),
            padding=24,  # Secure 24px around this element only
        ),
        md.Button("Button 4", style=md.ButtonStyle.filled()),
    ],
    gap=12,
    padding=16,
)

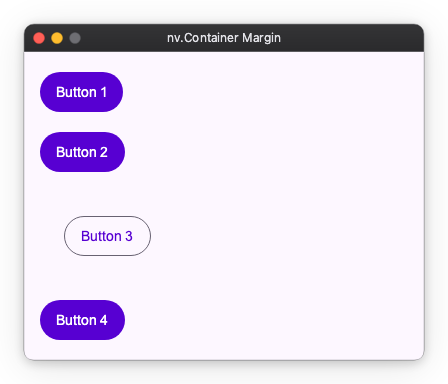

Container padding example

Gap Property per Component

Depending on the component, the method of setting spacing differs slightly.

Component gap property Description
Row / Column gap Interval between child elements
Flow main_gap Interval within row (same direction)
cross_gap Interval between rows (wrapping direction)
Grid column_gap Interval between columns (horizontal)
row_gap Interval between rows (vertical)
